Kona Dew-E DL

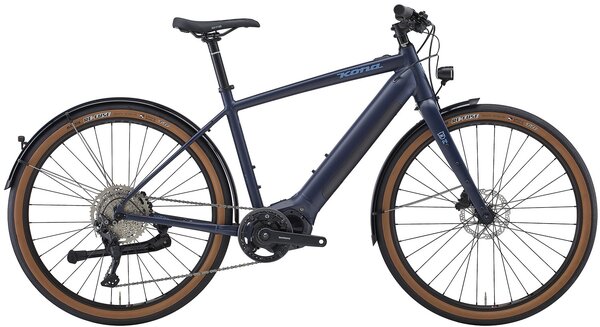

Commuters have been asking for a beefed-up version of the Dew-E, and our answer is the creatively named Dew-E DL. An aluminum frame features a Kona Rove Verso Full Carbon Flat Mount Disc fork, while the 10-speed Shimano Deore drivetrain works in perfect harmony with their E6100 motor. Powered by a 504 Wh battery, your long commute can now be much less taxing. Sturdy aluminum fenders and lights keep you dry and seen throughout your ride. Powerful Shimano hydraulic disc brakes and 160mm rotors stop on a dime, even in wet conditions, and puncture-resistant WTB Horizon TCS 650B x 47 tires keep the road rolling by smoothly whether you're cruising on pavement or a dirt path.
Kona 6061 Aluminum
Kona 7005 and 6061 Aluminum alloys are used extensively throughout our fleet of mountain and asphalt bicycles. A tough, durable, light alloy, both Kona 7005 and 6061 deliver fantastic, reliable performance that lasts for thousands of rides. Much of our 7005/6061 tubing is butted and/or formed, meaning the tubing's wall thickness can be increased or decreased, as well as shaped, so we can fine-tune a particular frame's strength and ride characteristics depending on its intended application.
Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.
Tapered Head Tube
More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it's needed.
Tubeless Compatible Rims
Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.
12x142mm, 12x148 and 12x157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted.
650B wheels and tires have a similar overall diameter to a traditional 700c gravel or commuting tire, but with a smaller diameter rim and a wider, taller tire. The extra air volume in this new generation of urban and mixed-surface tires means they can be run comfortably at lower pressures while still rolling quickly on a variety of surfaces. It's the best of both worlds.
For more information please feel free to contact the Kona experets of Lakeside Bicycles by phone (10-7 M-F, 10-6 Sat, 12-5 Sun at 503-699-8665) or by email at Info@Lakeside-Bikes.Com.
Register a new Kona bike within three months of purchase, and the original owner qualifies the Kona frame for a free Lifetime Warranty. Note: this does not apply to Kona Carbon models.
ONE-YEAR LIMITED WARRANTY ON COMPLETE BICYCLE Kona warrants to the original owner that this new Kona bicycle shall be free of defective materials and workmanship for a period of one year from the date of original purchase in the United States or Canada and operated under normal conditions and use. During this one-year period, Kona shall repair or replace, at its sole option, all parts that are found by Kona to be defective and subject to this limited warranty. The original owner shall pay all labor charges connected with the repair or replacement of all parts.
LIFETIME LIMITED WARRANTY ON BICYCLE FRAME When warranty on non-carbon Kona bikes and frames is NOT registered within three months of purchase, Kona warrants to the original owner that the frame of this new Kona bicycle purchased from an authorized Kona dealer shall be free of defective materials or workmanship for a three-year period. IF THE WARRANTY IS REGISTERED WITH KONA WITHIN THREE MONTHS AFTER THE PURCHASE OF THE BICYCLE, THE WARRANTY IS EXTENDED FOR THE LIFETIME OF THE ORIGINAL OWNER, with the exception of carbon bikes and frames. During warranty period, Kona shall repair or replace, at its sole option, the bicycle frame if Kona determines the frame is defective and subject to this limited warranty. The original owner shall pay all labor and shipping charges connected with the repair or replacement of the bicycle frame. Please see the Kona owner’s manual, provided with your bicycle, for additional information.
Note: this Limited Lifetime Warranty applies to purchases from Kona U.S.A., Kona Canada and Kona Europe.
|Frame||Kona 6061 Aluminum Butted|
|Fork||Kona Rove Verso Full Carbon Flat Mount Disc|
|Rims/Wheels||WTB ST i23 TCS 2.0|
|Hubs||Shimano Tiagra 100 X 12 frt, 142 X 12 rr|
|Tires||WTB Horizon TCS 2/Puncture Protection 650 X 47c|
|Rear Derailleur||Shimano Deore|
|Rear Cogs||Shimano Deore 11-46t 10sp|
|Handlebars||Kona Aluminum Riser|
|Tape/Grips||Kona Key Grip|
|Brake Levers||Shimano MT201 Hydraulic|
|Brakes||Shimano Hydraulic w/RT54 160mm rotors front and rear|
|Seat Post||Kona Commuter 31.6|
|Seat Binder||Kona Clamp|
|Accessories & Extras||Fenders, Busch & Muller front & rear light, Kickstand|
|Color(s)||Matte Midnight Blue, Mauve|
|Sizes||Small, Medium, Large, X-Large|
|Drive Unit||Shimano E6100 20MPH|
|Charger||Shimano Steps 2A|
* Subject to change without notice.
|Mauve / Small||B22EDWD01||210000054445|
|Blue / Medium||B36EDWD03||210000054446|
|Blue / Large||B36EDWD05||210000054447|
|Blue / X-Large||B36EDWD06||210000054448|
