Campagnolo Bora WTO Rim Brake

Campagnolo Bora WTO Rim Brake

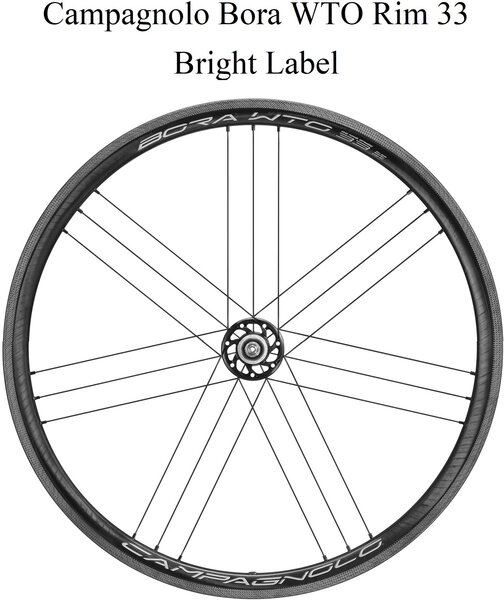

Rear Campagnolo Bora WTO Rim 33 in the Bright Label color
Please select options Unavailable


Lakeside Bicycles: The Campagnolo experts since 1997

Campagnolo Bora WTO Rim:  Each component of this wheel has been optimized in the wind tunnel in order to improve its aerodynamic performance. It therefore delivers multiple benefits that can be noted on different routes, from the most demanding of sprints to relaunching after a bend, while still ensuring efficiency on the flat and now also suitable for the hardest uphill finishes! It is a turning point in the all-rounder segment: a truly multi-purpose wheel.

Aerodynamic carbon rims, aluminum hubs and ceramic USB cup-and-cone bearing system in the hubs themselves: every design choice has been made with a view to optimising performance. The 19 mm internal diameter of the rim enables tyres of 23mm, 25mm and 28mm to be fitted. In addition, with the 2-Way Fit version, Campagnolo offers its tried-and-tested technology with full compatibility with clincher and tubeless tyres. While the key purpose of these wheels is to deliver extreme performance, safety is also guaranteed by the Campagnolo AC3 (All Conditions Carbon Control) technology, which ensures safe, modular braking in all weather conditions.

Available versions: 33, 45, 60, and 70mm rim profiles, bright and dark label, Campagnolo FW or HG11 body.  For more information please feel free to contact the Campagnolo experts of Lakeside Bicycles by phone at 503-699-8665 (10-7 W-F, 10-6 Sat, 12-5 Sun) or by email at Info@Lakeside-Bikes.Com

Wheels developed in the wind tunnel:  every wheel component, from the rim to the hub and the spokes, is designed to guarantee maximum aerodynamic penetration.

Rims made entirely fo high modulus carbon:  the rims are built from unidirectional carbon which ensures the superior rideability for which Campagnolo is famous.

Special brake blocks for carbon wheels:  the special compound boosts braking performance on both wet and dry surfaces, without increasing the wear rate of the pad.

USB ceramic cup-and-cone system:  easy to register balls/bearings result in reduced possibility of ball/bearing play, precise operation, and steady performance over time.

Hubs structured in lightweight aluminium which is extremely stiff and aerodynamic, optimised in the wind tunnel and designed for optimal rigidity and weight.

Campagnolo G3 Spoke GeometryG3 Geometry:  Reinvent the Wheel, not just it's look:

Campagnolo’s unique G3 spoke pattern comprises groups of three parallel straight-pull spokes, arranged in a 2:1 ratio. Having twice as many spokes on one side allows wheels with G3 to counteract the asymmetric drivetrain and braking forces acting on them, creating more symmetric performance and equalising the load. Energy transfer and lateral rigidity are improved, and spoke tension is optimised, reducing stress and increasing lifespan.

All Campagnolo disc brake wheels utilise the G3 pattern, the front wheel has more spokes on the disc brake side, and the rear is biased to the drivetrain side.

Campagnolo USB Ultra Smooth Bearings:USBtm Ultra Smooth Bearings:

Perfectly smooth surfaces and lower friction to reduce loss of power are the most interesting features.

Add on the reduced weight and resistance to corrosion and you will understand why we can give you the best thanks to USB™. All your power will be transferred onto the road.

Campagnolo® has a long-standing reputation for the extremely high performance of its hubs in terms of smoothness and reliability. In fact, all the projects are entirely developed in our R&D department Campy Tech Lab™ and we have put obsessive care into taking care of every detail.

The hubs with USB™ ceramic bearings (Ultra Smooth Bearings) further enhance the wheels' smoothness and reduce weight and the need for maintenance. Comparative tests have shown that USB™ bearings are 50% smoother than standard bearings.

Now improving your performance during the race or simply going for a ride with your friends will be easier.

USB™ - Ultra Smooth Bearings - technology is used for Record™ cranksets and for the new Shamal™ Ultra™ wheels.


Campagnolo Bora Wheel Technologies: G3 Spoke Lacing:

Detailed review of G3 lacing
